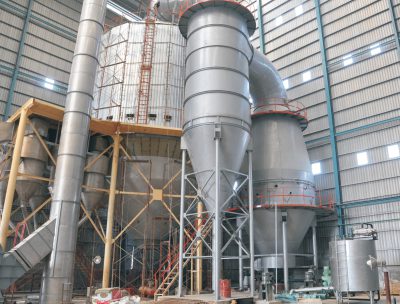

CWM-Ⅲ Serial water-coal-slurry stove
CWM-Ⅲ Serial water-coal-slurry stove
CWM-ⅢSerial water-coal-slurry stove Advantages
1.Good controllability and high automaticity Because water-coal-slurry is similar as petroleum, it can be pressurized in pipes, spray burnedas oil.
2.The combustion fan and compression pump are adopted frequency control of motor speed, which can be operated easily as oil burning equipments. High combustion efficiency and large output (combustion efficiency is about 99%).
3.Good thermal insulation effect, energy conservation.
4.High dust collection efficiency.
5.Long working life.
Technological process of water-coal-slurry producing ceramic powder.
Storage→Filtration vibrating screen→Servo tank→Screw pump→Water-coal-slutty stove→Hot air pipe→Dust collector→Spray dryer.
Water Coal Slurry Stove Model
Model |
CWM-III-3.2 |
CWM-III-4.0 |
CWM-III -5.0 |
CWM-III-6.5 |
CWM-III-8.0 |
CWM-III-10 |
CWM-III-12 |
CWM-III-14 |
| Evaporation water(Kg/H) | 3200 | 4000 | 5000 | 6500 | 8000 | 10000 | 12000 | 1400 |
| Suitable equipment | 2500-3200 Spray dryer | 3200-4000 Spray dryer | 4000-5000 Spray dryer | 5000-6500 Spray dryer | 6500-8000 Spray dryer | 8000-10000 Spray dryer | 10000-12000 Spray dryer | 12000-1400 Spray dryer |
| Rated thermal power(106kcal/h) |
21.25-27.20 | 27.20-34.0 | 34.0-42.5 | 42.5-55.25 | 55.25-68.0 | 68.0-85.0 | 85.0-102.0 | 102.0-119.0 |
| Powder process(T/D) | 162.2-207.6 | 207.6-259.6 | 259.6-324.4 | 324.4-421.8 | 421.8-519.1 | 519.1-648.9 | 648.9-778.7 | 778.7-908.5 |
| Suitable coal | Bituminous coal: heat value≥5500kcal/kg, volatile matter: ≥30%, melting point≥1150℃, cinder characteristic≤5. ash content≤20%(if coal quality can not meet the requirement, buyers need to provide coal quality analysis report, certificate of origin and 5-8kg sample, we will supply suitable burning mode and slurrying method.) |
Bituminous coal: heat value≥5500kcal/kg, volatile matter: ≥30%, melting point≥1150℃, cinder characteristic≤5. ash content≤18% (if coal quality can not meet the requirement, buyers need to provide coal quality analysis report, certificate of origin and 5-8kg sample, we will supply suitable burning mode and slurrying method.) |
||||||
| Coal requirement | Slurry moisture 34%, powder moisture 7%, 1T powder require 65Kg coal | |||||||
| Furnace temperature(℃) | 950-1150 | |||||||
| Inlet temperature(℃) | 500-700 | |||||||
| Outer diameter(φM) | 2.8 | 3.2 | 3.6 | 4.2 | 4.5 | 5.0 | 5.5 | 6.0 |
| Spray gun(piece) | 6 | 8 | 10 | 14 | 16 | 18 | 22 | 24 |
| Ignite diesel oil gun(piece) | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 4 |
| Combustion fan(KW) | 7.5(1 set) | 11(1 set) | 15(1 set) | 18.5(1 set) | 18.5(1 set) | 22(1 set) | 30(1 set) | 37(1 set) |
| Screw pump(KW) 1 transducer for 2 pumps |
5.5(2 set) | 5.5(2 set) | 7.5(2 set) | 7.5(2 set) | 7.5(2 set) | 7.5(2 set) | 11(2 set) | 11(2 set) |
| Servo tank(M ) (with mix system) |
10(1 set) | 10(1 set) | 12(1 set) | 15(1 set) | 18(1 set) | 20(1 set) | 25(1 set) | 30(1 set) |
| Ignite oil tank(M ) with oil supply gear pump |
0.8(1 set) | 0.8(1 set) | 1.0(1 set) | 1.2(1 set) | 1.2(1 set) | 1.5(1 set) | 1.5(1 set) | 1.5(1 set) |
| Dust collector | Φ2.0(1 set) | Φ 2.2(1 set) | 02.5(1 set) | Φ2.0(2 set) | Φ2.2(1 set) | Φ2.5(1 set) | Φ2.8(1 set) | Φ3.0(2 set) |
| Material of dust collector | Shell uses A3δ5 steel plate, inside 40mm thermal insulation cotton and 115mm refractory heavy high aluminum clay brick Center pipe uses δ5 SUS 310S. Fan blade is heavy high aluminum castables. |
|||||||
| Hot air pipe diameter(ΦM) | 1.6 | 1.8 | 1.9 | 2.1 | 2.2 | 2.5 | 2.8 | 3.1 |
| Material of hot air pipe | Shell uses A3δ5 steel plate, inside 40mm thermal insulation cotton and 115mm refractory light high aluminum clay brick. |
|||||||
